CODE 012.1 - Podaci o pakovanju

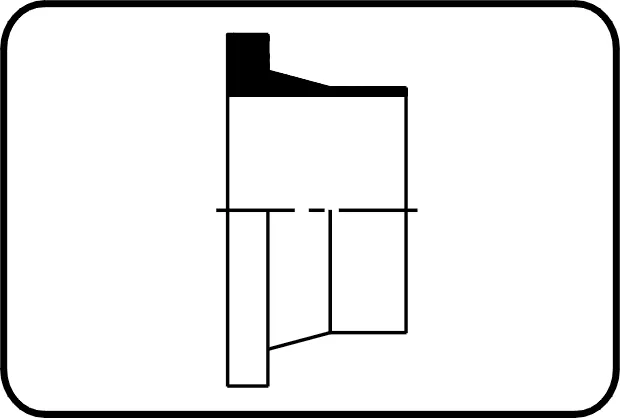

- Stub prirubnica ANSI
- kratki trn
- brizganje
- čeono + IR zavarivanje
- PVDF UHP prirodna
Podložne prstenove pogledajte u delu Pribor.
| Dimenzije | Code | Detalji | Težina | pc/Box | ME | BoxNr |
|---|---|---|---|---|---|---|
| pc/Pal | pack size l/w/h [mm] | |||||
| 90 | 35.012.1090.33 | 90X2,8 SDR33 ISO S-16 | 0.367 | St | KA404 | |
| 8,00 | 192,00 | 370 / 280 / 195 | ||||
| 110 | 35.012.1110.33 | 110X3,4 SDR33 ISO S-16 | 0.460 | St | KA105 | |
| 14,00 | 224,00 | 380 / 290 / 400 | ||||
| 125 | 35.012.1125.33 | 125X3,9 SDR33 ISO S-16 | 0.475 | St | KA105 | |
| 14,00 | 224,00 | 380 / 290 / 400 | ||||
| 140 | 35.012.1140.33 | 140X4,3 SDR33 ISO S-16 | 0.665 | St | KA105 | |
| 8,00 | 128,00 | 380 / 290 / 400 | ||||
| 160 | 35.012.1160.33 | 160X4,9 SDR33 ISO S-16 | 0.949 | St | KA105 | |
| 6,00 | 96,00 | 380 / 290 / 400 | ||||
| 200 | 35.012.1200.33 | 200X6,2 SDR33 ISO S-16 | 1.900 | St | KA105 | |
| 4,00 | 64,00 | 380 / 290 / 400 | ||||
| 225 | 35.012.1225.33 | 225X6,9 SDR33 ISO S-16 | 1.457 | St | KA105 | |
| 4,00 | 64,00 | 380 / 290 / 400 | ||||
| 250 | 35.012.1250.33 | 250X7,7 SDR33 ISO S-16 | 2.791 | St | KA105 | |
| 2,00 | 32,00 | 380 / 290 / 400 | ||||
| 315 | 35.012.1315.33 | 315X9,7 SDR33 ISO S-16 | 3.145 | St | KA105 | |
| 2,00 | 32,00 | 380 / 290 / 400 | ||||
| 20 | 35.012.1020.21 | 20X1,9 SDR21 ISO S-10 | 0.029 | St | KA404 | |
| 50,00 | 1.200,00 | 370 / 280 / 195 | ||||
| 25 | 35.012.1025.21 | 25X1,9 SDR21 ISO S-10 | 0.044 | St | KA404 | |
| 50,00 | 1.200,00 | 370 / 280 / 195 | ||||
| 32 | 35.012.1032.21 | 32X2,4 SDR21 ISO S-10 | 0.066 | St | KA404 | |
| 35,00 | 840,00 | 370 / 280 / 195 | ||||
| 40 | 35.012.1040.21 | 40X2,4 SDR21 ISO S-10 | 0.095 | St | KA404 | |
| 30,00 | 720,00 | 370 / 280 / 195 | ||||
| 50 | 35.012.1050.21 | 50X3,0 SDR21 ISO S-10 | 0.128 | St | KA404 | |
| 30,00 | 720,00 | 370 / 280 / 195 | ||||
| 63 | 35.012.1063.21 | 63X3,0 SDR21 ISO S-10 | 0.183 | St | KA404 | |
| 20,00 | 480,00 | 370 / 280 / 195 | ||||
| 75 | 35.012.1075.21 | 75X3,6 SDR21 ISO S-10 | 0.244 | St | KA404 | |
| 15,00 | 360,00 | 370 / 280 / 195 | ||||
| 90 | 35.012.1090.21 | 90X4,3 SDR21 ISO S-10 | 0.393 | St | KA404 | |
| 8,00 | 192,00 | 370 / 280 / 195 | ||||
| 110 | 35.012.1110.21 | 110X5,3 SDR21 ISO S-10 | 0.562 | St | KA105 | |
| 14,00 | 224,00 | 380 / 290 / 400 | ||||
| 125 | 35.012.1125.21 | 125X6,0 SDR21 ISO S-10 | 0.628 | St | KA105 | |
| 14,00 | 224,00 | 380 / 290 / 400 | ||||
| 160 | 35.012.1160.21 | 160X7,7 SDR21 ISO S-10 | 1.094 | St | KA105 | |
| 6,00 | 96,00 | 380 / 290 / 400 | ||||
| 200 | 35.012.1200.21 | 200X9,6 SDR21 ISO S-10 | 2.255 | St | KA105 | |
| 4,00 | 64,00 | 380 / 290 / 400 | ||||
| 225 | 35.012.1225.21 | 225X10,8 SDR21 ISO S-10 | 1.920 | St | KA105 | |
| 4,00 | 64,00 | 380 / 290 / 400 | ||||
| 250 | 35.012.1250.21 | 250X11,9 SDR21 ISO S-10 | 3.249 | St | KA105 | |
| 2,00 | 32,00 | 380 / 290 / 400 |
