Katalog proizvoda

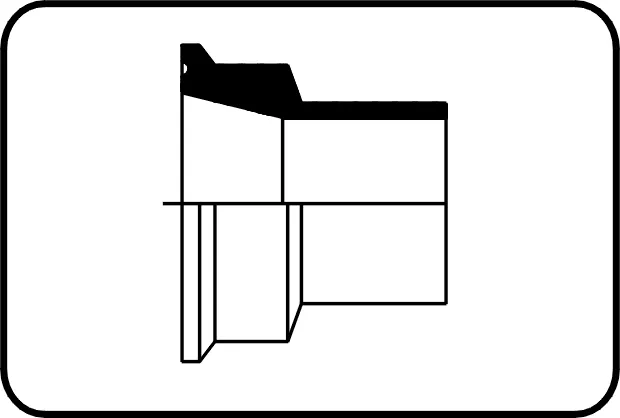

CODE 037 - Podaci o pakovanju
- Sanitarni spojni fiting
- brizganje
- čeono + IR zavarivanje
- PVDF UHP prirodna
| Dimenzije | Code | Detalji | Težina | pc/Box | ME | BoxNr |
|---|---|---|---|---|---|---|
| pc/Pal | pack size l/w/h [mm] | |||||
| 20 | 35.037.0020.21 | 20X1,9 SDR21 MOP 10 bar | 0.032 | St | KA103 | |
| 30,00 | 1.920,00 | 280 / 190 / 190 | ||||
| 25 | 35.037.0025.21 | 25X1,9 SDR21 MOP 10 bar | 0.032 | St | KA103 | |
| 30,00 | 1.920,00 | 280 / 190 / 190 | ||||
| 32 | 35.037.0032.21 | 32X2,4 SDR21 MOP 10 bar | 0.038 | St | KA103 | |
| 30,00 | 1.920,00 | 280 / 190 / 190 | ||||
| 40 | 35.037.0040.21 | 40X2,4 SDR21 MOP 10 bar | 0.048 | St | KA404 | |
| 40,00 | 960,00 | 370 / 280 / 195 | ||||
| 50 | 35.037.0050.21 | 50X3,0 SDR21 MOP 10 bar | 0.045 | St | KA404 | |
| 30,00 | 720,00 | 370 / 280 / 195 | ||||
| 63 | 35.037.0063.21 | 63X3,0 SDR21 MOP 10 bar | 0.064 | St | KA404 | |
| 25,00 | 600,00 | 370 / 280 / 195 |
