Katalog proizvoda
CODE 047 - Podaci o pakovanju

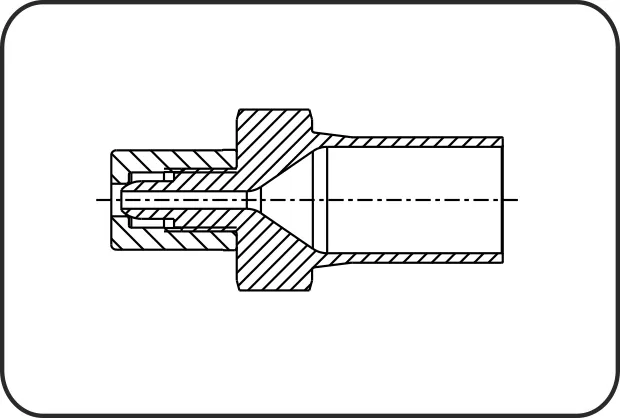

- Prelazni fiting
- PVDF-UHP na PFA
- brizganje
- čeono + IR zavarivanje, Flare LINK
- PVDF UHP prirodna
| Dimenzije | Code | Detalji | Težina | pc/Box | ME | BoxNr |
|---|---|---|---|---|---|---|
| pc/Pal | pack size l/w/h [mm] | |||||
| 20 | 35.047.2014.21 | 20X1/4" SDR21 MOP 10 bar | 0.028 | St | KA103 | |
| 30,00 | 1.920,00 | 280 / 190 / 190 | ||||
| 20 | 35.047.2038.21 | 20X3/8" SDR21 MOP 10 bar | 0.033 | St | KA103 | |
| 50,00 | 3.200,00 | 280 / 190 / 190 | ||||
| 20 | 35.047.2012.21 | 20X1/2" SDR21 MOP 10 bar | 0.034 | St | KA103 | |
| 50,00 | 3.200,00 | 280 / 190 / 190 | ||||
| 20 | 35.047.2034.21 | 20X3/4" SDR21 MOP 10 bar | 0.051 | St | KA404 | |
| 80,00 | 1.920,00 | 370 / 280 / 195 | ||||
| 25 | 35.047.2514.21 | 25X1/4" SDR21 MOP 10 bar | 0.038 | St | KA103 | |
| 30,00 | 1.920,00 | 280 / 190 / 190 | ||||
| 25 | 35.047.2538.21 | 25X3/8" SDR21 MOP 10 bar | 0.044 | St | KA404 | |
| 50,00 | 800,00 | 370 / 280 / 195 | ||||
| 25 | 35.047.2512.21 | 25X1/2" SDR21 MOP 10 bar | 0.044 | St | KA103 | |
| 40,00 | 2.560,00 | 280 / 190 / 190 | ||||
| 25 | 35.047.2534.21 | 25X3/4" SDR21 MOP 10 bar | 0.058 | St | KA103 | |
| 30,00 | 1.920,00 | 280 / 190 / 190 | ||||
| 25 | 35.047.2501.21 | 25X1" SDR21 MOP 10 bar | 0.108 | St | KA103 | |
| 15,00 | 960,00 | 280 / 190 / 190 | ||||
| 32 | 35.047.3238.21 | 32X3/8" SDR21 MOP 10 bar | 0.068 | St | KA103 | |
| 25,00 | 1.600,00 | 280 / 190 / 190 | ||||
| 32 | 35.047.3212.21 | 32X1/2" SDR21 MOP 10 bar | 0.070 | St | KA404 | |
| 50,00 | 1.200,00 | 370 / 280 / 195 | ||||
| 32 | 35.047.3234.21 | 32X3/4" SDR21 MOP 10 bar | 0.081 | St | KA103 | |
| 25,00 | 1.600,00 | 280 / 190 / 190 | ||||
| 32 | 35.047.3201.21 | 32X1" SDR21 MOP 10 bar | 0.113 | St | KA103 | |
| 25,00 | 1.600,00 | 280 / 190 / 190 | ||||
| 40 | 35.047.4012.21 | 40X1/2" SDR21 MOP 10 bar | 0.080 | St | KA404 | |
| 50,00 | 1.200,00 | 370 / 280 / 195 | ||||
| 40 | 35.047.4034.21 | 40X3/4" SDR21 MOP 10 bar | 0.091 | St | KA404 | |
| 50,00 | 1.200,00 | 370 / 280 / 195 |
