Katalog proizvoda
CODE 317 - Podaci o pakovanju

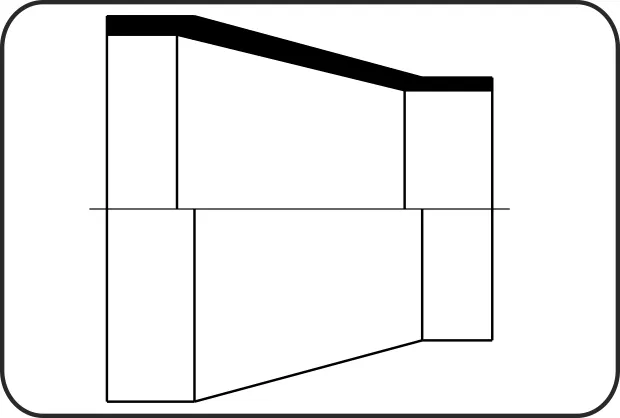

- Redukcija koncentrična
- mašinska obrada
- čeono + IR zavarivanje
- PVDF UHP prirodna
| Dimenzije | Code | Detalji | Težina | pc/Box | ME | BoxNr |
|---|---|---|---|---|---|---|
| pc/Pal | pack size l/w/h [mm] | |||||
| 110/75 | 35.317.1175.33 | 110/75 SDR33 ISO S-16 | 0.269 | St | KA404 | |
| 10,00 | 240,00 | 370 / 280 / 195 | ||||
| 125/90 | 35.317.1290.33 | 125/90 SDR33 ISO S-16 | 0.293 | St | KA105 | |
| 10,00 | 160,00 | 380 / 290 / 400 | ||||
| 125/110 | 35.317.1211.33 | 125/110 SDR33 ISO S-16 | 0.313 | St | KA404 | |
| 15,00 | 360,00 | 370 / 280 / 195 | ||||
| 140/75 | 35.317.1475.33 | 140/75 SDR33 ISO S-16 | 0.355 | St | KA404 | |
| 6,00 | 144,00 | 370 / 280 / 195 | ||||
| 140/90 | 35.317.1490.33 | 140/90 SDR33 ISO S-16 | 0.480 | St | KA105 | |
| 15,00 | 240,00 | 380 / 290 / 400 | ||||
| 140/125 | 35.317.1412.33 | 140/125 SDR33 ISO S-16 | 0.392 | St | KA105 | |
| 10,00 | 160,00 | 380 / 290 / 400 | ||||
| 160/90 | 35.317.1690.33 | 160/90 SDR33 ISO S-16 | 0.627 | St | KA105 | |
| 10,00 | 160,00 | 380 / 290 / 400 | ||||
| 180/110 | 35.317.1811.33 | 180/110 SDR33 ISO S-16 | 0.732 | St | KA105 | |
| 10,00 | 160,00 | 380 / 290 / 400 | ||||
| 180/160 | 35.317.1816.33 | 180/160 SDR33 ISO S-16 | 0.672 | St | KA105 | |
| 6,00 | 96,00 | 380 / 290 / 400 | ||||
| 200/140 | 35.317.2014.33 | 200/140 SDR33 ISO S-16 | 1.060 | St | KA105 | |
| 5,00 | 80,00 | 380 / 290 / 400 | ||||
| 200/160 | 35.317.2016.33 | 200/160 SDR33 ISO S-16 | 0.970 | St | KA105 | |
| 5,00 | 80,00 | 380 / 290 / 400 | ||||
| 225/110 | 35.317.2211.33 | 225/110 SDR33 ISO S-16 | 1.361 | St | KA105 | |
| 3,00 | 48,00 | 380 / 290 / 400 | ||||
| 225/140 | 35.317.2214.33 | 225/140 SDR33 ISO S-16 | 1.186 | St | KA2071 | |
| 5,00 | 80,00 | 390 / 290 / 470 | ||||
| 225/200 | 35.317.2220.33 | 225/200 SDR33 ISO S-16 | 0.736 | St | KA105 | |
| 5,00 | 80,00 | 380 / 290 / 400 | ||||
| 250/200 | 35.317.2521.33 | 250/200 SDR33 ISO S-16 | 1.020 | St | KA2071 | |
| 4,00 | 64,00 | 390 / 290 / 470 | ||||
| 280/160 | 35.317.2816.33 | 280/160 SDR33 ISO S-16 | 1.750 | St | KA105 | |
| 3,00 | 48,00 | 380 / 290 / 400 | ||||
| 280/225 | 35.317.2822.33 | 280/225 SDR33 ISO S-16 | 1.685 | St | KA105 | |
| 2,00 | 32,00 | 380 / 290 / 400 | ||||
| 63/20 | 35.317.6320.21 | 63/20 SDR21 ISO S-10 | 0.079 | St | KA404 | |
| 30,00 | 480,00 | 370 / 280 / 195 | ||||
| 75/20 | 35.317.7520.21 | 75/20 SDR21 ISO S-10 | 0.120 | St | KA404 | |
| 25,00 | 600,00 | 370 / 280 / 195 | ||||
| 75/25 | 35.317.7525.21 | 75/25 SDR21 ISO S-10 | 0.118 | St | KA404 | |
| 25,00 | 400,00 | 370 / 280 / 195 | ||||
| 75/32 | 35.317.7532.21 | 75/32 SDR21 ISO S-10 | 0.107 | St | KA404 | |
| 25,00 | 600,00 | 370 / 280 / 195 | ||||
| 90/20 | 35.317.9020.21 | 90/20 SDR21 ISO S-10 | 0.177 | St | KA404 | |
| 20,00 | 320,00 | 370 / 280 / 195 | ||||
| 90/25 | 35.317.9025.21 | 90/25 SDR21 ISO S-10 | 0.160 | St | KA404 | |
| 20,00 | 480,00 | 370 / 280 / 195 | ||||
| 90/32 | 35.317.9032.21 | 90/32 SDR21 ISO S-10 | 0.200 | St | KA201 | |
| 20,00 | 1.440,00 | 260 / 205 / 210 | ||||
| 90/40 | 35.317.9040.21 | 90/40 SDR21 ISO S-10 | 0.146 | St | KA404 | |
| 15,00 | 360,00 | 370 / 280 / 195 | ||||
| 110/20 | 35.317.1120.21 | 110/20 SDR21 ISO S-10 | 0.283 | St | KA404 | |
| 10,00 | 240,00 | 370 / 280 / 195 | ||||
| 110/25 | 35.317.1125.21 | 110/25 SDR21 ISO S-10 | 0.290 | St | KA404 | |
| 10,00 | 240,00 | 370 / 280 / 195 | ||||
| 110/32 | 35.317.1132.21 | 110/32 SDR21 ISO S-10 | 0.323 | St | KA404 | |
| 12,00 | 192,00 | 370 / 280 / 195 | ||||
| 110/40 | 35.317.1140.21 | 110/40 SDR21 ISO S-10 | 0.346 | St | KA404 | |
| 10,00 | 240,00 | 370 / 280 / 195 | ||||
| 110/50 | 35.317.1150.21 | 110/50 SDR21 ISO S-10 | 0.347 | St | KA404 | |
| 10,00 | 160,00 | 370 / 280 / 195 | ||||
| 125/63 | 35.317.1263.21 | 125/63 SDR21 ISO S-10 | 0.406 | St | KA105 | |
| 10,00 | 160,00 | 380 / 290 / 400 | ||||
| 125/90 | 35.317.1290.21 | 125/90 SDR21 ISO S-10 | 0.438 | St | KA404 | |
| 6,00 | 144,00 | 370 / 280 / 195 | ||||
| 125/110 | 35.317.1211.21 | 125/110 SDR21 ISO S-10 | 0.424 | St | KA105 | |
| 18,00 | 288,00 | 380 / 290 / 400 | ||||
| 140/50 | 35.317.1450.21 | 140/50 SDR21 ISO S-10 | 0.500 | St | KA105 | |
| 18,00 | 288,00 | 380 / 290 / 400 | ||||
| 140/75 | 35.317.1475.21 | 140/75 SDR21 ISO S-10 | 0.531 | St | KA105 | |
| 10,00 | 160,00 | 380 / 290 / 400 | ||||
| 140/90 | 35.317.1490.21 | 140/90 SDR21 ISO S-10 | 0.512 | St | KA105 | |
| 15,00 | 240,00 | 380 / 290 / 400 | ||||
| 140/125 | 35.317.1412.21 | 140/125 SDR21 ISO S-10 | 0.550 | St | KA105 | |
| 12,00 | 192,00 | 380 / 290 / 400 | ||||
| 160/32 | 35.317.1632.21 | 160/32 SDR21 ISO S-10 | 0.990 | St | KA105 | |
| 8,00 | 128,00 | 380 / 290 / 400 | ||||
| 160/63 | 35.317.1663.21 | 160/63 SDR21 ISO S-10 | 0.860 | St | KA404 | |
| 4,00 | 96,00 | 370 / 280 / 195 | ||||
| 180/90 | 35.317.1890.21 | 180/90 SDR21 ISO S-10 | 0.989 | St | KA105 | |
| 4,00 | 64,00 | 380 / 290 / 400 | ||||
| 180/140 | 35.317.1814.21 | 180/140 SDR21 ISO S-10 | 0.930 | St | KA105 | |
| 5,00 | 80,00 | 380 / 290 / 400 | ||||
| 200/90 | 35.317.2090.21 | 200/90 SDR21 ISO S-10 | 1.074 | St | KA105 | |
| 4,00 | 64,00 | 380 / 290 / 400 | ||||
| 200/110 | 35.317.2011.21 | 200/110 SDR21 ISO S-10 | 1.191 | St | KA105 | |
| 5,00 | 80,00 | 380 / 290 / 400 | ||||
| 200/140 | 35.317.2014.21 | 200/140 SDR21 ISO S-10 | 1.220 | St | KA105 | |
| 5,00 | 80,00 | 380 / 290 / 400 | ||||
| 200/160 | 35.317.2016.21 | 200/160 SDR21 ISO S-10 | 1.380 | St | KA105 | |
| 4,00 | 64,00 | 380 / 290 / 400 | ||||
| 225/110 | 35.317.2211.21 | 225/110 SDR21 ISO S-10 | 1.800 | St | KA105 | |
| 4,00 | 64,00 | 380 / 290 / 400 | ||||
| 225/140 | 35.317.2214.21 | 225/140 SDR21 ISO S-10 | 1.600 | St | KA105 | |
| 4,00 | 64,00 | 380 / 290 / 400 | ||||
| 250/200 | 35.317.2521.21 | 250/200 SDR21 ISO S-10 | 1.550 | St | KA105 | |
| 4,00 | 64,00 | 380 / 290 / 400 | ||||
| 280/160 | 35.317.2816.21 | 280/160 SDR21 ISO S-10 | 2.284 | St | KA105 | |
| 3,00 | 48,00 | 380 / 290 / 400 | ||||
| 280/200 | 35.317.2820.21 | 280/200 SDR21 ISO S-10 | 2.400 | St | KA105 | |
| 3,00 | 48,00 | 380 / 290 / 400 | ||||
| 280/225 | 35.317.2822.21 | 280/225 SDR21 ISO S-10 | 2.504 | St | KA105 | |
| 3,00 | 48,00 | 380 / 290 / 400 |
